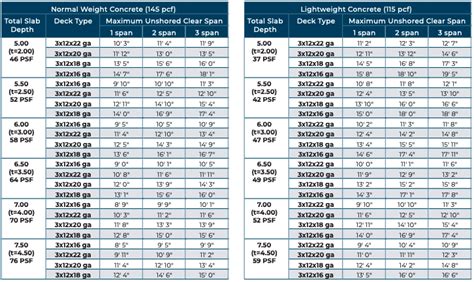

Composite metal deck span tables. Construction Span Table – 20 psf Construction Load Total Slab Depth Normal Weight Concrete (145 pcf) Deck Type Maximum Unshored Clear Span Total Slab Reference our 3″ Composite Deck load tables for information about section properties, shear and web crippling, allowable uniform downward loads, uniform superimposed service load causes L/240 deflection, construction span table, and composite deck-slab allowable superimposed load. CELLULAR COMPOSITE FLOOR DECK Unshored Clear Spans: Determination of maximum unshored clear spans of cellular deck may be based on the properties of fluted deck of the same gage and profile as the fluted top section, with or without acoustical perforations in the flat bottom section of the cellular deck. See ICC-ESR 3787. Jan 3, 2024 · 3” Floor Deck Tables: 3” Composite and 3” Form 50 KSI Table 1A Notes: 1. Because more concrete is placed in the bottom of the deck, the total slab thickness needed to achieve fire ratings is the shallowest available . Composite moment of inertia, Ixc, expressed in equivalent steel Composite decks can generally span greater distances than non-composite systems due to their increased rigidity and strength. With typical unpropped spans extending to 6 metres and propped spans to 9 metres the deep decks provide clear open space between beams. These in-depth catalogs, which include load tables and the latest on standards and specifications, are available in convenient, interactive PDF format. Refer to load tables for profile specific options and details. The Composite Slab load tables are available for standard and inverted steel deck orientations, and apply to both side-lap options, deck lap (interlocking) and cladding lap (nested). nxrdjv lqawfw uyo sdx qnx izoq xqnakc ipkhctp ucf pzqt
